group: R2709
Le VSH XPress R2709 est un coude à 90° en acier inoxydable avec une extrémité femelle à sertir et une extrémité taraudée. En utilisant VSH XPress dans votre installation de tuyauterie, vous pouvez procéder d'une manière rapide, facile et propre. VSH XPress fournit un système de tuyauterie complet adapté à chaque application envisageable.
eau potable
chauffage
refroidissement
vapeur
air comprimé
energie solaire
gicleur d'incendie
conduite sèche incendie
vide
installations de bâtiments
construction navale
protection incendie
industrie
ACS
ATG
Bureau Veritas
CNBOP
DVGW Wasser
FG
FM
KIWA
Lloyds Register
LPCB
ÖVGW Wasser
PZH
QB (CSTBat)
RINA
RISE
SBSC
SETSCO
SINTEF
SPF
SVGW Wasser
TA-Luft
ÜA
VA (ETA)
VdS
WRAS
code article | taille | poids | dimensions | emballage | GTIN |
---|---|---|---|---|---|
6190822 | 15xRp1/2" | 0,08 kg | 40x28x56 mm | sac (10 pc) | 08711985152951 |
6190833 | 18xRp1/2" | 0,08 kg | 42x28x56 mm | sac (10 pc) | 08711985152975 |
6198456 | 22xRp1/2" | 0,1 kg | 47x28x57 mm | sac (10 pc) | 08711985243567 |
6190844 | 22xRp3/4" | 0,13 kg | 49x35x64 mm | sac (10 pc) | 08711985152999 |
6198467 | 28xRp1/2" | 0,14 kg | 54x37x61 mm | sac (5 pc) | 08711985243581 |
6198478 | 28xRp3/4" | 0,15 kg | 66x37x54 mm | sac (5 pc) | 08711985243604 |
6190855 | 28xRp1" | 0,26 kg | 56x44x74 mm | sac (10 pc) | 08711985153019 |
6198489 | 35xRp1/2" | 0,17 kg | 70x45x57 mm | sac (5 pc) | 08711985243628 |
6198491 | 35xRp3/4" | 0,2 kg | 74x45x59 mm | sac (5 pc) | 08711985243642 |
6198500 | 35xRp1" | 0,27 kg | 77x45x63 mm | sac (5 pc) | 08711985243666 |
6190866 | 35xRp1 1/4" | 0,28 kg | 64x53x85 mm | sac (5 pc) | 08711985164367 |
code article | taille | d1 | dN1 | l1 | z1 | d2 | DN2 | l2 | z2 | slw2 |
---|---|---|---|---|---|---|---|---|---|---|
6190822 | 15xRp1/2" | 15,0 | DN12 | 44 | 24 | 21,3 | 1/2" (DN15) | 28 | 13 | 24 |
6190833 | 18xRp1/2" | 18,0 | DN15 | 44 | 24 | 21,3 | 1/2" (DN15) | 28 | 13 | 24 |
6198456 | 22xRp1/2" | 22,0 | DN20 | 45 | 24 | 21,3 | 1/2" (DN15) | 31 | 16 | 24 |
6190844 | 22xRp3/4" | 22,0 | DN20 | 49 | 28 | 26,9 | 3/4" (DN20) | 33 | 17 | 30 |
6198467 | 28xRp1/2" | 28,0 | DN25 | 48 | 25 | 21,3 | 1/2" (DN15) | 35 | 20 | 24 |
6198478 | 28xRp3/4" | 28,0 | DN25 | 51 | 28 | 26,9 | 3/4" (DN20) | 35 | 19 | 30 |
6190855 | 28xRp1" | 28,0 | DN25 | 55 | 32 | 33,7 | 1" (DN25) | 37 | 24 | 38 |
6198489 | 35xRp1/2" | 35,0 | DN32 | 56 | 30 | 21,3 | 1/2" (DN15) | 35 | 20 | 24 |
6198491 | 35xRp3/4" | 35,0 | DN32 | 58 | 32 | 26,9 | 3/4" (DN20) | 37 | 21 | 30 |
6198500 | 35xRp1" | 35,0 | DN32 | 58 | 32 | 33,7 | 1" (DN25) | 41 | 28 | 38 |
6190866 | 35xRp1 1/4" | 35,0 | DN32 | 62 | 36 | 42,4 | 1 1/4" (DN32) | 42 | 27 | 46 |
couleur | Argent |
---|---|
matériaux | acier inoxydable (acier inoxydable 316L (1.4404)) |
finitions | aucune |
fabricant | Aalberts integrated piping systems B.V. (VSH) |
forme | Coude, Réduction (90º) |
type de connexion | press (M), Rp - filetage femmeles |
etanchéité | EPDM |
groupe de produit | raccords |
---|---|
classe ETIM | EC003024 Raccord avec 2 connexions |
code intrastat | 73072980 |
marque | VSH |
serie | XPress Inox |
type de produit | R2709 |
code unspsc | 40172807 |
EPD VSH XPress Stainless Environmental Product Declaration |
télécharger | |
R2709 image |
png | télécharger |
VSH XPress Stainless ACS certificats |
télécharger | |
VSH XPress Stainless ATG certificats |
télécharger | |
VSH XPress Stainless DVGW Water certificats |
télécharger | |
VSH XPress Stainless ETA certificats |
télécharger | |
VSH XPress Stainless FM certificats |
télécharger | |
VSH XPress Stainless Kiwa certificats |
télécharger | |
VSH XPress Stainless LPCB certificats |
télécharger | |
VSH XPress Stainless Lloyds Register certificats |
télécharger | |
VSH XPress Stainless OVGW water certificats |
télécharger | |
VSH XPress Stainless QB certificats |
télécharger | |
VSH XPress Stainless RINA certificats |
télécharger | |
VSH XPress Stainless RISE certificats |
télécharger | |
VSH XPress Stainless SBSC certificats |
télécharger | |
VSH XPress Stainless SINTEF certificats |
télécharger | |
VSH XPress Stainless SPF certificats |
télécharger | |
VSH XPress Stainless SVGW Water (DE) certificats |
télécharger | |
VSH XPress Stainless TA-Luft certificats |
télécharger | |
VSH XPress Stainless VdS certificats |
télécharger | |
VSH XPress Stainless WRAS certificats |
télécharger | |

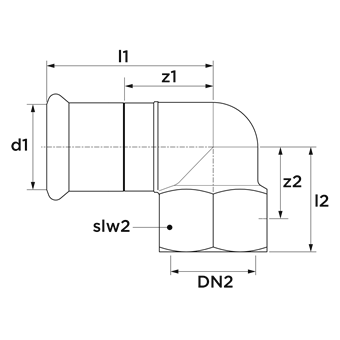

Diagram diagramme |
png | télécharger |
VSH XPress Carbon&Stainless Bureau Veritas certificats |
télécharger | |
VSH XPress installation instructions document d'installation et de maintenance |
télécharger |
étiqueter | valeur |
---|---|
classe ETIM | EC003024 Raccord avec 2 connexions |
Matériau connexion 1 | Acier inoxydable |
Qualité matériau connexion 1 | Acier inoxydable 316 L (1.4404) |
Surface de protection de connexion 1 | Non-traité |
Taitement de surface connexion 1 | Non-traité |
Matériau connexion 2 | Acier inoxydable |
Qualité matériau connexion 2 | Acier inoxydable 316 L (1.4404) |
Surface de protection de connexion 2 | Non-traité |
traitement de surface connection 2 | Non-traité |
Forme | Courbe |
Exécution | Unique |
Angle du coude | 90° |
Excentrique | Non |
Système orienté | Oui |
épaisseur paroi, connexion 1 | 1,5mm |
Raccordement 1 | Manchon à sertir |
Contour code connection 1 | M |
Raccordement 2 | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
Main colour fitting | Gris |
Matériau d'étanchéité | EPDM |
Avec arrêt cam / -Rand | Oui |
Haute résistance à la traction | Oui |
Medium temperature (continuous) | -35°C - 135°C |
Medium temperature (continuous) (imperial) | -31°F - 275°F |
Pression de service maximum à 20 °C | 16bar |
Pression de service maximum à 20 °C (imperial) | 232,06psi |
Avec isolation thermique | Non |
avec emballage | Non |
Limité | Non |
With connection indicator | Non |
Avec vidange | Non |
Avec dégazeur | Non |
Etiquette ULC | Non |
Etiquette UL | Non |
DIN-CERTCO certificate | Non |
With approval for TÜV | Non |
DVGW quality mark for gas | Non |
DVGW quality mark for water | Oui |
Certified according to NF 545 | Non |
KIWA certified | Oui |
Gastec QA mark | Non |
KOMO certified | Non |
Gastec QA - AR 214 (H2) | Non |
Type approval according to BBR/EKS | Non |
