group: R2729
Le VSH XPress R2729 est un bouchon en acier inoxydable avec une extrémité femelle à sertir. En utilisant VSH XPress dans votre installation de tuyauterie, vous pouvez procéder d'une manière rapide, facile et propre. VSH XPress fournit un système de tuyauterie complet adapté à chaque application envisageable.
eau potable
chauffage
refroidissement
vapeur
air comprimé
energie solaire
gicleur d'incendie
conduite sèche incendie
vide
installations de bâtiments
construction navale
protection incendie
industrie
ACS
ATG
Bureau Veritas
CNBOP
DVGW Wasser
FG
FM
KIWA
Lloyds Register
LPCB
ÖVGW Wasser
PZH
QB (CSTBat)
RINA
RISE
SBSC
SETSCO
SINTEF
SPF
SVGW Wasser
TA-Luft
ÜA
VA (ETA)
VdS
WRAS
code article | taille | poids | dimensions | emballage | GTIN |
---|---|---|---|---|---|
6191011 | 15 | 0,02 kg | 23x23x23 mm | sac (20 pc) | 08711985152241 |
6191020 | 18 | 0,02 kg | 23x27x27 mm | sac (20 pc) | 08711985152265 |
6191031 | 22 | 0,03 kg | 24x32x32 mm | sac (10 pc) | 08711985152289 |
6191042 | 28 | 0,04 kg | 26x38x38 mm | sac (10 pc) | 08711985152302 |
6191053 | 35 | 0,06 kg | 29x45x45 mm | sac (5 pc) | 08711985152326 |
6191064 | 42 | 0,09 kg | 37x54x54 mm | sac (4 pc) | 08711985152340 |
6191075 | 54 | 0,14 kg | 42x65x65 mm | sac (4 pc) | 08711985152364 |
6204187 | 76,1 | 0,44 kg | 95x94x94 mm | sac (2 pc) | 08711985249736 |
6204198 | 88,9 | 0,57 kg | 107x109x109 mm | sac (2 pc) | 08711985249743 |
6204209 | 108 | 0,89 kg | 127x133x133 mm | sac (2 pc) | 08711985249750 |

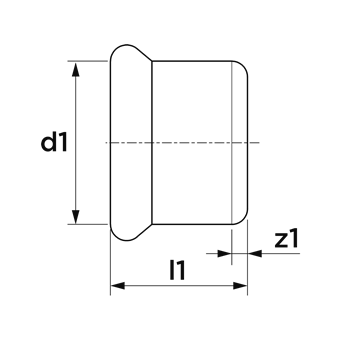

code article | taille | d1 | dN1 | l1 | z1 |
---|---|---|---|---|---|
6191011 | 15 | 15,0 | DN12 | 23 | 3 |
6191020 | 18 | 18,0 | DN15 | 23 | 3 |
6191031 | 22 | 22,0 | DN20 | 24 | 3 |
6191042 | 28 | 28,0 | DN25 | 26 | 3 |
6191053 | 35 | 35,0 | DN32 | 29 | 3 |
6191064 | 42 | 42,0 | DN40 | 37 | 7 |
6191075 | 54 | 54,0 | DN50 | 42 | 7 |
6204187 | 76,1 | 76,1 | DN65 | 95 | 40 |
6204198 | 88,9 | 88,9 | DN80 | 107 | 44 |
6204209 | 108 | 108,0 | DN100 | 127 | 50 |
couleur | Argent |
---|---|
matériaux | acier inoxydable (acier inoxydable 316L (1.4404)) |
finitions | aucune |
fabricant | Aalberts integrated piping systems B.V. (VSH) |
forme | Bouchon |
type de connexion | press (M) |
etanchéité | EPDM |
groupe de produit | raccords |
---|---|
classe ETIM | EC003023 Fitting with 1 connection |
code intrastat | 73072980 |
marque | VSH |
serie | XPress Inox |
type de produit | R2729 |
EPD VSH XPress Stainless Environmental Product Declaration |
télécharger | |
R2729 image |
png | télécharger |
VSH XPress Stainless ACS certificats |
télécharger | |
VSH XPress Stainless ATG certificats |
télécharger | |
VSH XPress Stainless DVGW Water certificats |
télécharger | |
VSH XPress Stainless ETA certificats |
télécharger | |
VSH XPress Stainless FM certificats |
télécharger | |
VSH XPress Stainless Kiwa certificats |
télécharger | |
VSH XPress Stainless LPCB certificats |
télécharger | |
VSH XPress Stainless Lloyds Register certificats |
télécharger | |
VSH XPress Stainless OVGW water certificats |
télécharger | |
VSH XPress Stainless QB certificats |
télécharger | |
VSH XPress Stainless RINA certificats |
télécharger | |
VSH XPress Stainless RISE certificats |
télécharger | |
VSH XPress Stainless SBSC certificats |
télécharger | |
VSH XPress Stainless SINTEF certificats |
télécharger | |
VSH XPress Stainless SPF certificats |
télécharger | |
VSH XPress Stainless SVGW Water (DE) certificats |
télécharger | |
VSH XPress Stainless TA-Luft certificats |
télécharger | |
VSH XPress Stainless VdS certificats |
télécharger | |
VSH XPress Stainless WRAS certificats |
télécharger | |
Diagram diagramme |
png | télécharger |
VSH XPress Carbon&Stainless Bureau Veritas certificats |
télécharger | |
VSH XPress installation instructions document d'installation et de maintenance |
télécharger |
étiqueter | valeur |
---|---|
classe ETIM | EC003023 Fitting with 1 connection |
Matériau connexion 1 | Acier inoxydable |
Qualité matériau connexion 1 | Acier inoxydable 316 L (1.4404) |
Surface de protection de connexion 1 | Non-traité |
Taitement de surface connexion 1 | Non-traité |
Système orienté | Oui |
Raccordement 1 | Manchon à sertir |
Pression de service maximum à 20 °C | 16bar |
Pression de service maximum à 20 °C (imperial) | 232,06psi |
code de contour | M |
Matériau d'étanchéité | EPDM |
Main colour fitting | Gris |
Medium temperature (continuous) | -35°C - 135°C |
Medium temperature (continuous) (imperial) | -31°F - 275°F |
avec emballage | Non |
Avec vidange | Non |
Avec dégazeur | Non |
Limité | Non |
With connection indicator | Non |
Etiquette UL | Non |
Etiquette ULC | Non |
DIN-CERTCO certificate | Non |
With approval for TÜV | Non |
DVGW quality mark for gas | Non |
DVGW quality mark for water | Oui |
KIWA certified | Oui |
Gastec QA mark | Non |
KOMO certified | Non |
Gastec QA - AR 214 (H2) | Non |
Type approval according to BBR/EKS | Non |
