group: SP4001GV

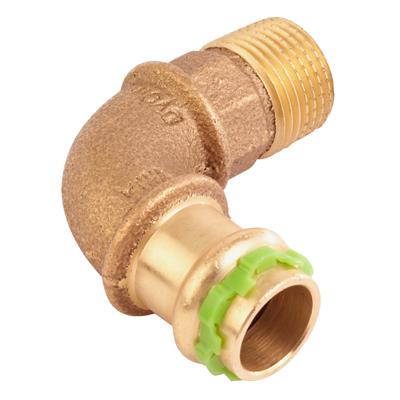

Le VSH SudoPress SP4001GV est une courbe à 90°; avec une emboîture femelle à sertir et une extrémité filetée. En utilisant VSH SudoPress dans votre installation de tuyauterie, vous pouvez procéder de façon rapide, facile et propre. VSH SudoPress fournit un système de raccordement qui peut être utilisé dans les situations les plus diverses.
eau potable
chauffage
refroidissement
air comprimé
energie solaire
vide
installations de bâtiments
construction navale
industrie
ACS
DVGW Wasser
KIWA
QB (CSTBat)
RISE
SVGW Wasser
TSU
WRAS
code article | taille | poids | dimensions | emballage | GTIN |
---|---|---|---|---|---|
6673440 | 14xR3/8" | 0,07 kg | 39x55x22 mm | sac (5 pc) | 03430651358552 |
6673438 | 14xR1/2" | 0,09 kg | 47x56x22 mm | sac (5 pc) | 03430651358538 |
6671544 | 15xR1/2 | 0,09 kg | 60x56x23 mm | sac (5 pc) | 03430651358569 |
6671535 | 16xR1/2 | 0,09 kg | 41x56x24 mm | sac (5 pc) | 03430651358583 |
6671555 | 18xR1/2" | 0,12 kg | 57x60x26 mm | sac (5 pc) | 03430651358606 |
6671566 | 18xR3/4" | 0,13 kg | 60x61x26 mm | sac (5 pc) | 03430651358613 |
6671577 | 22xR3/4" | 0,15 kg | 71x68x31 mm | sac (5 pc) | 03430651358620 |
6671588 | 28xR1" | 0,27 kg | 84x76x37 mm | sac (5 pc) | 03430651358644 |
code article | taille | d1 | dN1 | l1 | z1 | d2 | DN2 | l2 | slw2 | gamme d'arc | angle de proue |
---|---|---|---|---|---|---|---|---|---|---|---|
6673440 | 14xR3/8" | 14,0 | DN12 | 44 | 20 | 17,2 | 3/8" (DN10) | 28 | 19 | 19 | 90 |
6673438 | 14xR1/2" | 14,0 | DN12 | 44 | 20 | 21,3 | 1/2" (DN15) | 36 | 22 | 19 | 90 |
6671544 | 15xR1/2 | 15,0 | DN12 | 45 | 23 | 21,3 | 1/2" (DN15) | 48 | 19 | 19 | 90 |
6671535 | 16xR1/2 | 16,0 | DN12 | 44 | 20 | 21,3 | 1/2" (DN15) | 29 | 22 | 19 | 90 |
6671555 | 18xR1/2" | 18,0 | DN15 | 47 | 25 | 21,3 | 1/2" (DN15) | 43 | 22 | 20 | 90 |
6671566 | 18xR3/4" | 18,0 | DN15 | 47 | 25 | 26,9 | 3/4" (DN20) | 47 | 24 | 20 | 90 |
6671577 | 22xR3/4" | 22,0 | DN20 | 53 | 30 | 26,9 | 3/4" (DN20) | 55 | 25 | 24 | 90 |
6671588 | 28xR1" | 28,0 | DN25 | 58 | 34 | 33,7 | 1" (DN25) | 65 | 30 | 29 | 90 |
couleur | Laiton, bronze |
---|---|
matériaux | bronze, brass (CW617N, EN CC499K) |
finitions | aucune |
fabricant | Aalberts integrated piping systems B.V. (VSH) |
forme | Courbe, Réduction (90º) |
type de connexion | press (V), R - FPT - filetage mâle conique |
etanchéité | EPDM |
groupe de produit | raccords |
---|---|
classe ETIM | EC003024 Raccord avec 2 connexions |
code intrastat | 74122000 |
marque | VSH |
serie | SudoPress Cuivre |
type de produit | SP4001GV |
code unspsc | 40172807 |
SDS-VSH_SudoPress_Copper_brass lien vers la fiche |
télécharger | |
SDS-VSH_SudoPress_Copper_gunmetal lien vers la fiche |
télécharger | |
SP4001GV image |
jpg | télécharger |
SudoPress Copper DVGW Water certificats |
télécharger | |
SudoPress Copper WRAS certificats |
télécharger | |
SudoPress Koper KIWA certificats |
télécharger | |
VSH SudoPress Copper 15-54mm RISE ENG certificats |
télécharger | |
VSH SudoPress Copper Avis Technique certificats |
télécharger | |
VSH SudoPress Copper-ACS certificats |
télécharger | |
VSH SudoPress TSU certificats |
télécharger | |
VSHSudoPressRVS-RG_SVGW_W15-54D certificats |
télécharger | |
Diagram diagramme |
png | télécharger |
VSH SudoPress Copper 15-54mm RISE SE certificats |
télécharger | |
VSH SudoPress RVS-bronze SVGW Water 15-54mm (FR) certificats |
télécharger | |
VSH SudoPress instructions document d'installation et de maintenance |
télécharger |
étiqueter | valeur |
---|---|
classe ETIM | EC003024 Raccord avec 2 connexions |
Surface de protection de connexion 1 | Non-traité |
Taitement de surface connexion 1 | Non-traité |
Surface de protection de connexion 2 | Non-traité |
traitement de surface connection 2 | Non-traité |
Forme | Courbe |
Exécution | Unique |
Angle du coude | 90° |
Excentrique | Non |
Système orienté | Oui |
Raccordement 1 | Manchon à sertir |
Contour code connection 1 | V |
Raccordement 2 | Filetage mâle conique gaz (BSPT) |
Matériau d'étanchéité | EPDM |
Avec arrêt cam / -Rand | Oui |
Haute résistance à la traction | Oui |
Medium temperature (continuous) | -20°C - 110°C |
Medium temperature (continuous) (imperial) | -4°F - 230°F |
Pression de service maximum à 20 °C | 16bar |
Pression de service maximum à 20 °C (imperial) | 232,06psi |
avec emballage | Non |
Limité | Non |
With connection indicator | Oui |
Avec vidange | Non |
Avec dégazeur | Non |
Etiquette FM | Non |
Etiquette LPCB | Non |
Etiquette ULC | Non |
Etiquette UL | Non |
VdS quality mark | Non |
DVGW quality mark for gas | Non |
Certified according to NF 545 | Non |
Gastec QA mark | Non |
KOMO certified | Non |
Gastec QA - AR 214 (H2) | Non |
