group: SP6090GV

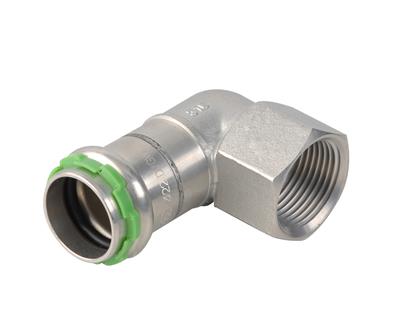

Le VSH SudoPress SP6090GV est un coude à 90°; avec une emboîture femelle à sertir et une extrémité taraudée. En utilisant VSH SudoPress dans votre installation de tuyauterie, vous pouvez procéder de façon rapide, facile et propre. VSH SudoPress fournit un système de raccordement qui peut être utilisé dans les situations les plus diverses.
eau potable
chauffage
refroidissement
air comprimé
energie solaire
vide
installations de bâtiments
industrie
DVGW Wasser
KIWA
ÖVGW Wasser
RISE
SPF
SVGW Wasser
ÜA
VA (ETA)
code article | taille | poids | dimensions | emballage | GTIN |
---|---|---|---|---|---|
6551556 | 15xRp1/2" | 0,08 kg | 61x40x28 mm | sac (5 pc) | 03430651366359 |
6551567 | 18xRp1/2" | 0,08 kg | 61x41x28 mm | sac (5 pc) | 03430651366366 |
6552865 | 22xRp1/2" | 0,1 kg | 62x43x31 mm | sac (5 pc) | 08711985486575 |
6551578 | 22xRp3/4" | 0,13 kg | 68x49x35 mm | sac (5 pc) | 03430651366373 |
6551589 | 28x1" | 0,19 kg | 76x56x44 mm | sac (5 pc) | 03430651366380 |
6551591 | 35xRp1 1/4" | 0,28 kg | 85x64x53 mm | sac (5 pc) | 03430650366398 |
6551600 | 42xRp1 1/2" | 0,48 kg | 105x74x62 mm | sac (1 pc) | 03430650366404 |
6551611 | 54xRp2" | 0,75 kg | 124x93x77 mm | sac (1 pc) | 03430650366411 |

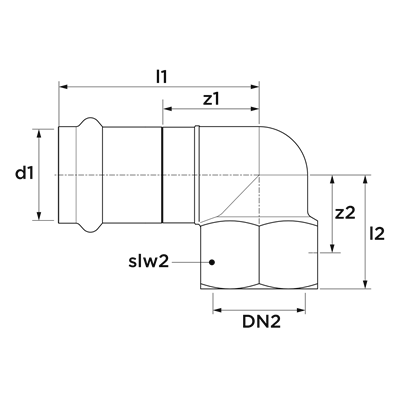

code article | taille | d1 | dN1 | l1 | z1 | d2 | DN2 | l2 | z2 | slw2 |
---|---|---|---|---|---|---|---|---|---|---|
6551556 | 15xRp1/2" | 15,0 | DN12 | 49 | 27 | 21,3 | 1/2" (DN15) | 28 | 13 | 24 |
6551567 | 18xRp1/2" | 18,0 | DN15 | 49 | 27 | 21,3 | 1/2" (DN15) | 28 | 13 | 24 |
6552865 | 22xRp1/2" | 22,0 | DN20 | 49 | 24 | 21,3 | 1/2" (DN15) | 31 | 13 | 24 |
6551578 | 22xRp3/4" | 22,0 | DN20 | 53 | 30 | 26,9 | 3/4" (DN20) | 33 | 17 | 30 |
6551589 | 28x1" | 28,0 | DN25 | 57 | 33 | 33,7 | 1" (DN25) | 37 | 24 | 38 |
6551591 | 35xRp1 1/4" | 35,0 | DN32 | 62 | 37 | 42,4 | 1 1/4" (DN32) | 42 | 27 | 46 |
6551600 | 42xRp1 1/2" | 42,0 | DN40 | 78 | 42 | 48,3 | 1 1/2" (DN40) | 47 | 32 | 54 |
6551611 | 54xRp2" | 54,0 | DN50 | 90 | 49 | 60,3 | 2" (DN50) | 61 | 43 | 67 |
couleur | Argent |
---|---|
matériaux | acier inoxydable (acier inoxydable 316L (1.4404)) |
finitions | aucune |
fabricant | Aalberts integrated piping systems B.V. (VSH) |
forme | Coude, Réduction (90º) |
type de connexion | press (V), Rp - filetage femmeles |
etanchéité | EPDM |
groupe de produit | raccords |
---|---|
classe ETIM | EC003024 Raccord avec 2 connexions |
code intrastat | 73072910 |
marque | VSH |
serie | SudoPress Inox |
type de produit | SP6090GV |
code unspsc | 40172807 |
